SED Stations

Averaging Depth (m) Filter dialog for field: Averaging Depth (m) and Options for empty fields: only empty fields no empty fields include empty fields	Average Travel Time Velocity Vsz (m/s) Filter dialog for field: Average Travel Time Velocity Vsz (m/s) and Options for empty fields: only empty fields no empty fields include empty fields	Velocity Uncertainty (m/s) Filter dialog for field: Velocity Uncertainty (m/s) and Options for empty fields: only empty fields no empty fields include empty fields
5.0	285	7
10.0	377	7
15.0	436	9
20.0	487	9
25.0	536	9
30.0	581	8
40.0	670	10
50.0	742	10
75.0	897	11
100.0	1026	13
150.0	1284	30
200.0	1468	47

QWL Picture

Quarter-wavelength representation of the velocity profiles. See Poggi et al. (2012). Characterizing the Vertical-to-Horizontal Ratio of Ground Motion at Soft-Sediment Sites. Bulletin of the Seismological Society of America, 102(6), 2741–2756.

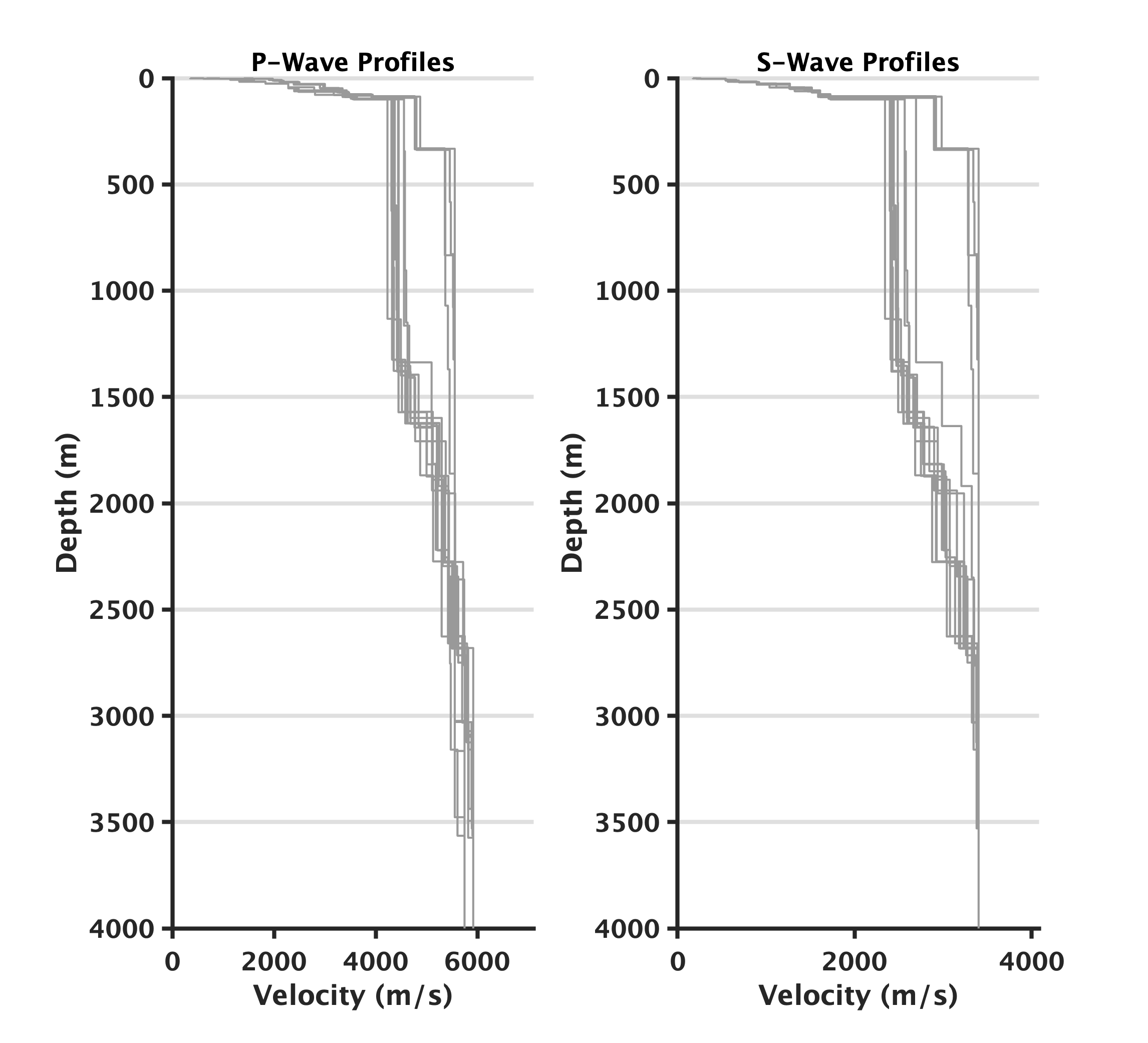

Profile Picture

Field	Value
Z0.8 (m)

Z0.8 (m)	18.0

Z0.8 is the depth where the average of the profiles reach the velocity of 0.8 km/s

Field	Value
Z1 (m)

Z1 (m)	28.0

Z1 is the depth where the average of the profiles reach the velocity of 1 km/s,

Field	Value
Z1.5 (m)

Z1.5 (m)	52.0

Z1.5 is the depth where the average of the profiles reach the velocity of 1.5km/s

author Filter dialog for field: author and Options for empty fields: only empty fields no empty fields include empty fields	agency Filter dialog for field: agency and Options for empty fields: only empty fields no empty fields include empty fields	last modified Filter dialog for field: last modified and Options for empty fields: only empty fields no empty fields include empty fields	file type Filter dialog for field: file type and Options for empty fields: only empty fields no empty fields include empty fields	link Filter dialog for field: link and Options for empty fields: only empty fields no empty fields include empty fields
Clotaire Michel	SED	04-09-2015 09:16:28	Document	Michel_et_al_2014.pdf
Dario Chieppa	SED	08-03-2024 09:13:38	Document	Report_SBUA2.pdf
Clotaire Michel	SED	04-06-2014 09:32:03	Document	SBUA2.pdf
