SED Stations

Averaging Depth (m) Filter dialog for field: Averaging Depth (m) and Options for empty fields: only empty fields no empty fields include empty fields	Average Travel Time Velocity Vsz (m/s) Filter dialog for field: Average Travel Time Velocity Vsz (m/s) and Options for empty fields: only empty fields no empty fields include empty fields	Velocity Uncertainty (m/s) Filter dialog for field: Velocity Uncertainty (m/s) and Options for empty fields: only empty fields no empty fields include empty fields
5.0	258	14
10.0	337	11
15.0	395	10
20.0	467	11
25.0	524	12
30.0	570	12
40.0	652	13
50.0	724	15
75.0	878	15
100.0	993	15
150.0	1158	13
200.0	1272	12

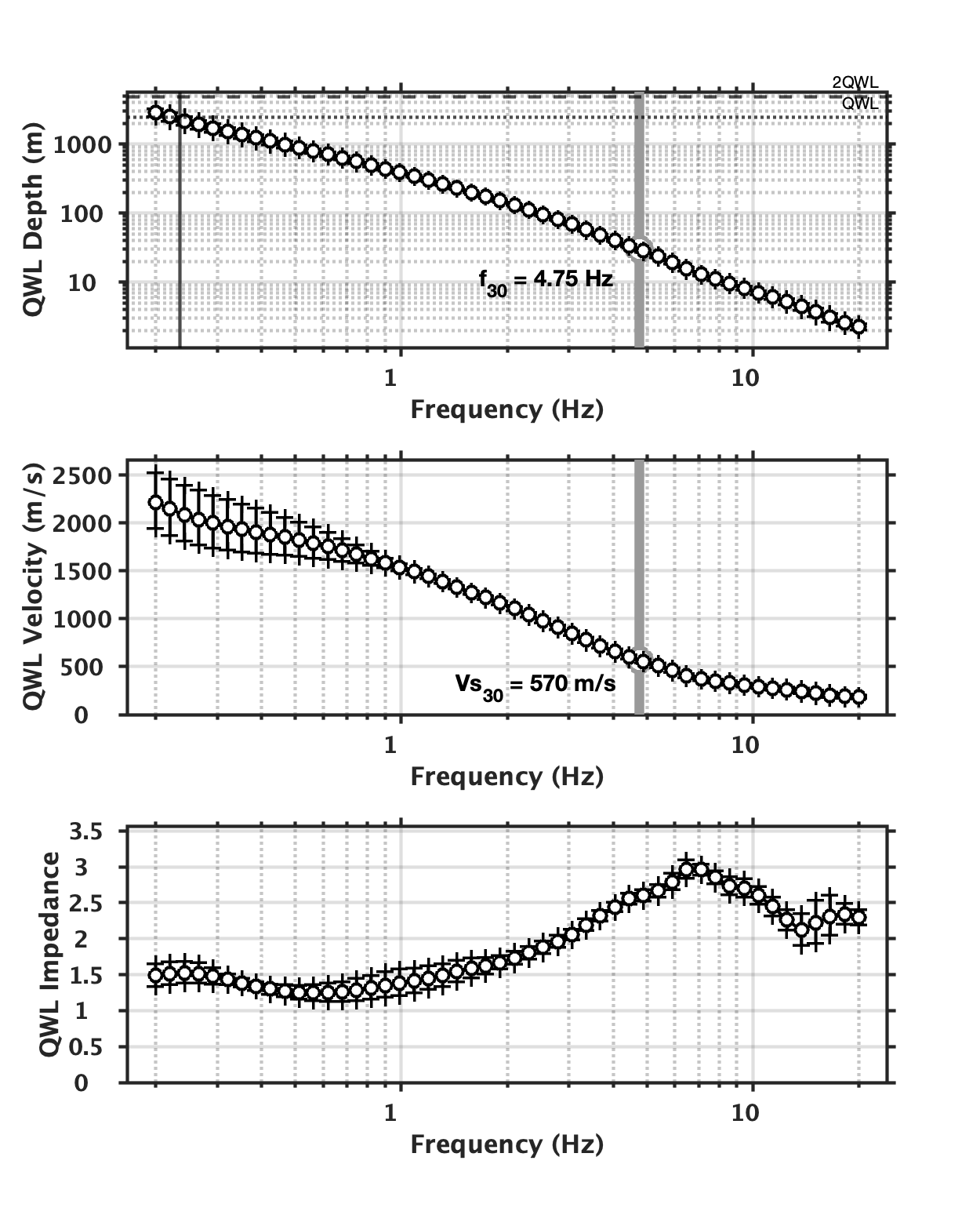

QWL Picture

Quarter-wavelength representation of the velocity profiles. See Poggi et al. (2012). Characterizing the Vertical-to-Horizontal Ratio of Ground Motion at Soft-Sediment Sites. Bulletin of the Seismological Society of America, 102(6), 2741–2756.

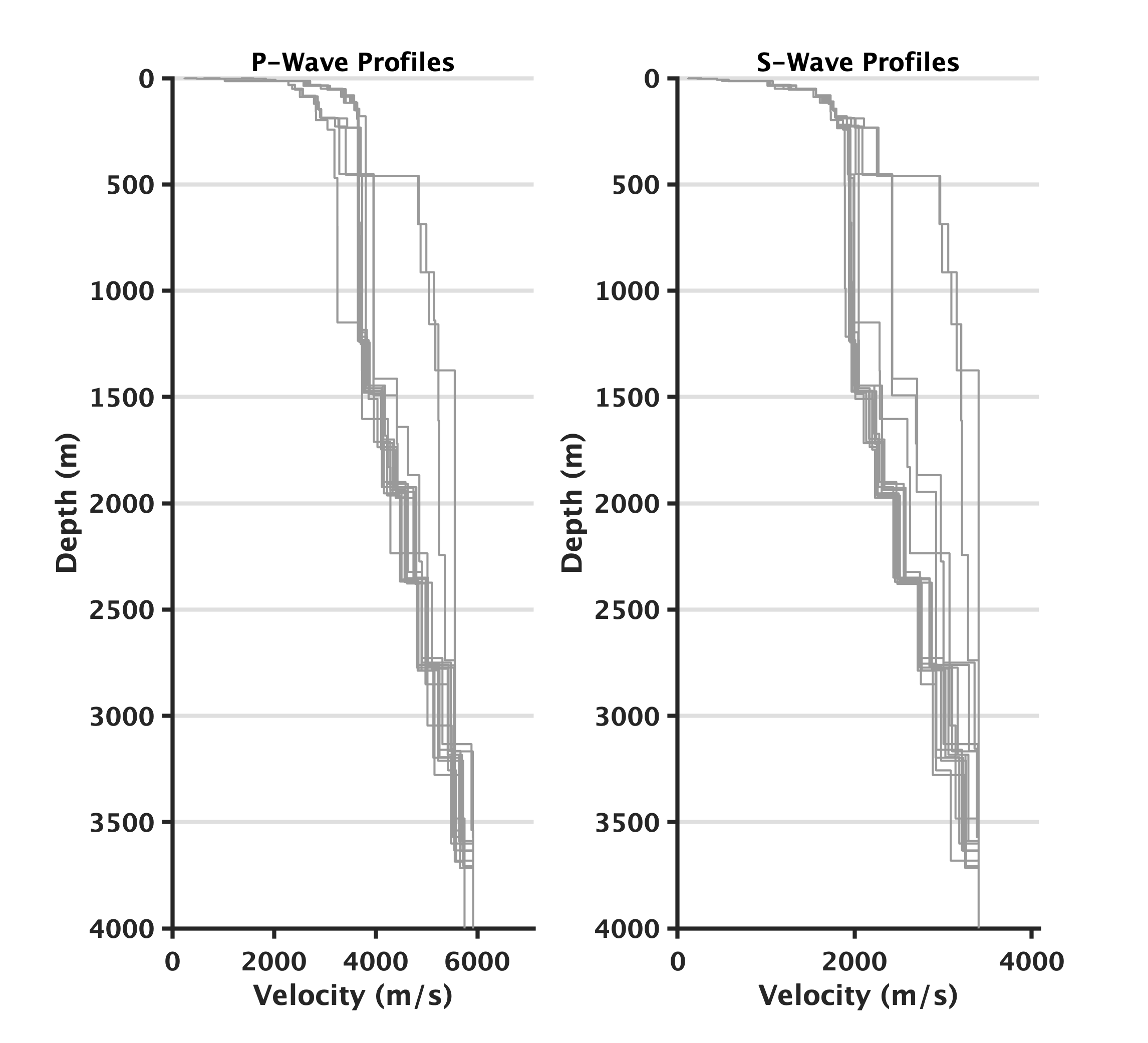

Profile Picture

Field	Value
Z0.8 (m)

Z0.8 (m)	15.0

Z0.8 is the depth where the average of the profiles reach the velocity of 0.8 km/s

Field	Value
Z1 (m)

Z1 (m)	15.0

Z1 is the depth where the average of the profiles reach the velocity of 1 km/s,

Field	Value
Z1.5 (m)

Z1.5 (m)	53.0

Z1.5 is the depth where the average of the profiles reach the velocity of 1.5km/s

author Filter dialog for field: author and Options for empty fields: only empty fields no empty fields include empty fields	agency Filter dialog for field: agency and Options for empty fields: only empty fields no empty fields include empty fields	last modified Filter dialog for field: last modified and Options for empty fields: only empty fields no empty fields include empty fields	file type Filter dialog for field: file type and Options for empty fields: only empty fields no empty fields include empty fields	link Filter dialog for field: link and Options for empty fields: only empty fields no empty fields include empty fields
Clotaire Michel	SED	18-11-2016 16:48:37	Document	report_moe.pdf
Dario Chieppa	SED	12-03-2024 08:26:53	Document	Report_SMOE.pdf
