Station Overview

Overview Location not available
Picture Gallery details...
Network CH
Station Code GSF01
Station Description Oberhasli, Gelmersee, BE
Latitude (WGS84) 46.61056
Longitude (WGS84) 8.32476
Station altitude (CH1903) 1851.0
running from 2014-12-10
...until 2017-08-16
Waveform Access restricted
Sensor Types Velocimeter
Geological Unit Granite of the Aarmassif
Site Morphology Class
Site Morphology Description Rock slope
Ground type EC8
Ground type SIA
Basin Information not in a sedimentary basin with possible 2D/3D effects
Reference
Resonance Frequency (Hz) -
Uncertainty Factor -
Vs 30 (m/s) -
Location Map


Federal Office of Topograpy: National Map 1:25‘000
Topography Map


Federal Office of Topograpy: DHM25: Digital Height Model 1:25000
Geology Map

Federal Office of Topograpy: Geological map of Switzerland 1:500‘000

Sensor locations

Location Code (none)
Opening Date 10-12-2014
End Date 2017-08-16
Housing Class Tunnel
Housing Description Service tunnel close to Gelmersee dam in steel metal pot
sensor depth below station 0.5 m
Distance to Building (m) -

Current Instrumentation

No open epochs

Location code (none)
On date 20-10-2016 11:00:00
Off date 2017-08-16 06:30:00
Waveform Access restricted
Sensor model LE-3D-1s
Sensor manufacturer Lennartz
Digitizer model Taurus
Digitizer manufacturer Nanometrics
Channels EHE , EHN , EHZ
Location code (none)
On date 10-12-2014 13:00:00
Off date 2016-10-20 11:00:00
Waveform Access restricted
Sensor model LE-3D-1s
Sensor manufacturer Lennartz
Digitizer model Taurus
Digitizer manufacturer Nanometrics
Channels EHE , EHN , EHZ

Site Characterization

channel group

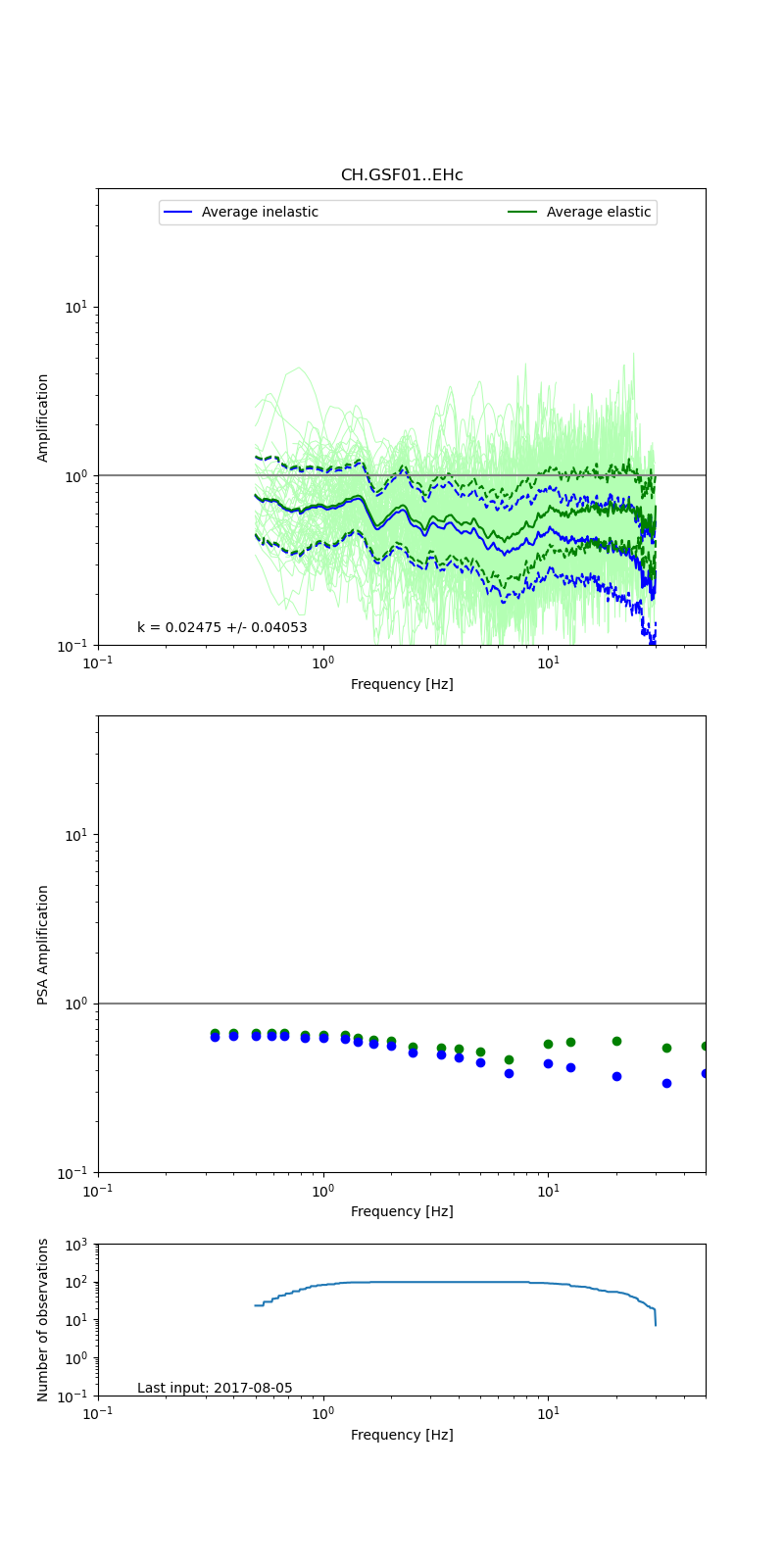

 Empirical Amplification
CH.GSF01..EH not available

Obtained from spectral modeling of small earthquakes with constant update.

  • Top: Fourier amplification with elastic (dashed line) and anelastic (solid line) amplification functions;
  • Centre: 5% damped response spectra amplification (anelastic);
  • Bottom: Number of recordings used.

See Edwards et al. (2013), Determination of Site Amplification from Regional Seismicity: Application to the Swiss National Seismic Networks. Seismological Research Letters, 84(4), 611–621.

H/V pick image: not available
Authoritative Site Characterization Analysis -
